100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet

Place of Origin : Guangdong, China

Brand Name : Polygao

Model Number : Sun Sheets & PC Embossed Sheets

Certification : ISO9001:2008

MOQ : 500 square meters

Price : CN¥32.47/square meters 500-999 square meters

Type : Crystal Polycarbonate Sheet

Warranty : More than 10 Years

Material : Polycarbonate, 100%Polycarbonate

Feature : Sustainable, Durable, Anti-aging,Impact-resistant, sound insulation etc.

After-sale Service : Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other

Coating : Composite co extrusion

Length : Customized, no limited

Project Solution Capability : graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others

Application : outdoor

Design Style : Modern

Thickness : 4-20mm

Size : 2.1*5.8 or custom size

Color : Customized

Surface : UV Protection Anti-fog

Service temperature : -40C to +120C

Standard Width : 930mm,1220mm

Payment Terms : 30% TT deposit ,70% Balance before shipment

Supply Ability : 3-5days after deposit

Contact Now

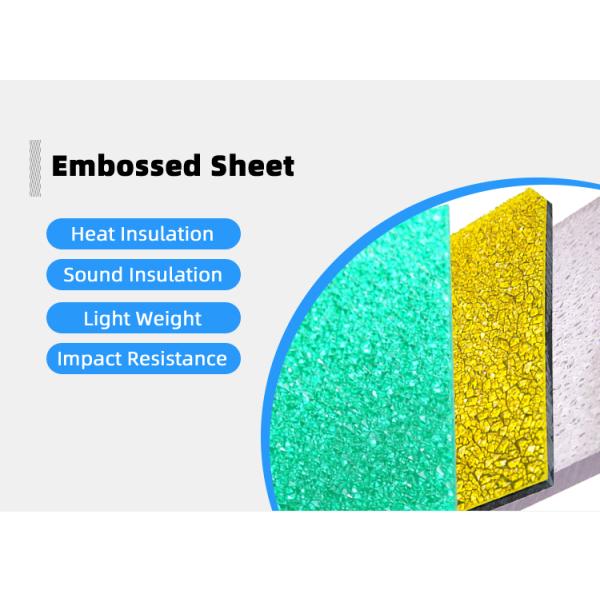

100% Bayer UV Polycarbonate Solid Embossed Sheet Modern Makrolon Crystal PC Sheets Outdoor Use Sun Sheets Roof Park Outdoorpeculiarity
High light transmittance: PC board light transmittance of up to 89%, comparable to glass, can provide sufficient and soft natural light indoors.
Impact resistance: The impact strength is extremely high, which is 250-300 times that of ordinary glass and 30 times that of acrylic plate of the same thickness, and it is known as "non-breakable glass".
Anti-ultraviolet: One side is coated with anti-ultraviolet (UV) coating, which can prevent ultraviolet light from passing through and protect valuable artworks and exhibits from ultraviolet damage.
Light weight: the proportion is only half that of glass, saving the cost of transportation, unloading, installation and support frame.
Flame retardant: The national standard GB50222-95 confirms that the PC board is difficult to burn, that is, B1 level. Its own ignition point is 580 degrees Celsius, self-extinguishing after the fire, burning will not produce toxic gases.
Flexability: It can be installed into arched, semi-circular roof and window by cold bending according to the design drawing. The minimum bending radius is 175 times of the thickness of the plate. It can also be hot bending.
Sound insulation: The sound insulation effect is obvious, and the sound insulation is better than the glass and acrylic plate of the same thickness.
Energy saving: It has a lower thermal conductivity (K value) than ordinary glass and other plastics, and the thermal insulation effect is 7%-25% higher than that of the same glass, which is used in buildings with heating equipment and is an environmentally friendly material.
Temperature adaptability: PC board does not occur cold and brittle at -100 ° C, does not soften at 135 ° C, and has no significant changes in its mechanics and mechanical properties in harsh environments.100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
Products Description
Embossed Polycarbonate Sheet Specifications:
Thickness
2-10mm
Maximum width
2,100mm
Length
no limit (according to client’s requirements)
Specific gravity
1.2 g/cm3
Colors
clear, blue, green, opal, brown, bronze, etc
Package
PE film on both sides of pc plastic sheet
Embossed Polycarbonate Sheet Techniacal Data:
Impact strength
850J/m
Light transmission
80%-90% for different thickness of clear color
UV resistance
50μm UV layer, can filter 99% ultraviolet radiation in sunlight
Coefficient of thermal expansion
0.065 mm/m°c
Service temperature
-40°c to 120°c
Heat conductivity
2.3-3.9 W/m2 °c
Tensile strength
>60N/mm2
Flexural strength
100N/mm2
Tensile street at break
>65mPa
Heat deflection temperature
140°c
Soundproof index
4mm thickness--27dB,5mm--28dB,6mm--29dB
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
Company Profile
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
Certifications
100% Bayer UV Embossed Solid Polycarbonate Sheet Outdoor Crystal Polycarbonate Sheet
FAQ
1.Whats the quality assurance you provided and how do you control quality ?
1)Established a procedure to check products at all stages of the manufacturing process;Besides, we also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2)100% inspection in assembly lines.

2.How many different kinds of PC sheet you can product?
There are the following products: Glittering Polycarbonate Sheet,Multi-wall Structure Polycarbonate Sheet,Greenhouse Polycarbonate Sheet, General Polycarbonate Solid Sheet,Advertising Polycarbonate Sheet, Polycarbonate Embossed Sheet, Polycarbonate Frosted Sheet, Soundproof Polycarbonate Sheet, Greenhouse Polycarbonate Sheet etc.

3.We are in very high temperature country, twin wall polypropylene sheet can support?
A: Yes, Polycarbonate sheet Temperature Resistance can be:40 ~+120 degree centigrade

4.Do you take special orders ?
Yes , We accept customized products.

5. How to identify the UV side of the sheet?
A: The UV side is the side protected with the printed masking film. To avoid installing the sheet at the wrong side which will void the warranty, please ensure only to remove the masking film after the sheet has been installed.

6. How do I know that a twin wall polypropylene sheet has UV layer?
A: You can’t see the UV layer with the naked eyes. A laboratory test is required to prove this. Some international labs have this facility. Usually UV side layer will more thicker than the down side.
